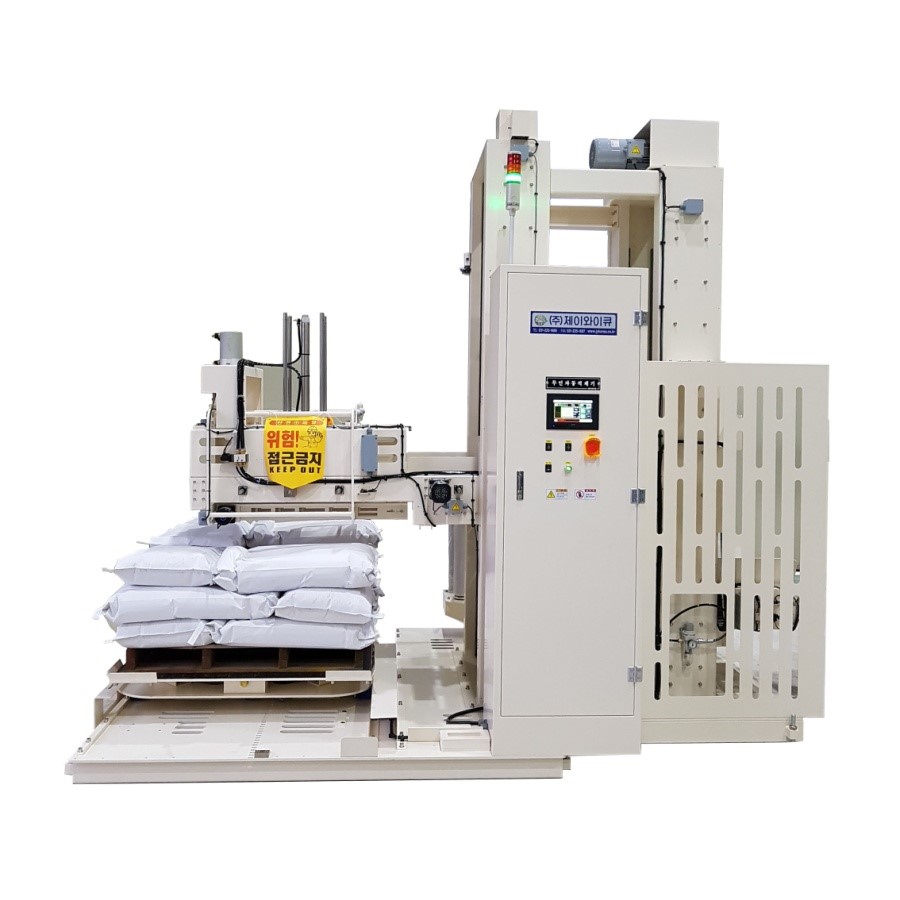

Auto palletizing system

This is the world’s first mobile unmanned automatic palletizer, which can be operated flexibly at any desired palletizing location.
Its cost-effective design ensures high profitability while minimizing product damage through clean and safe operation.

JYLS (Single Type)

Power Supply
AC380V
Operating Temp.
-10°C ~ 50°C
Relative Humidity
90%
(Non-condensing conditions)
Air Consumption
Below 3 HP
Power Consumption
Below 2.3 kW
Detection Device
Emergency switch & indicator display

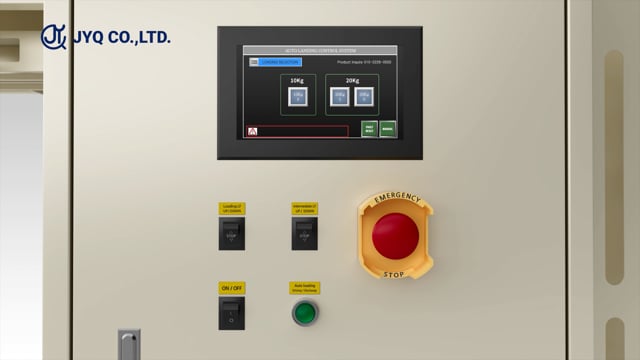

Control Panel
TFT‑LCD screen,
Auto setting for 10kg / 20kg / 40kg
Processing Capacity
450 ~ 500ea/hr
Dimensions
1,800 × 3,200 × 2,900 mm

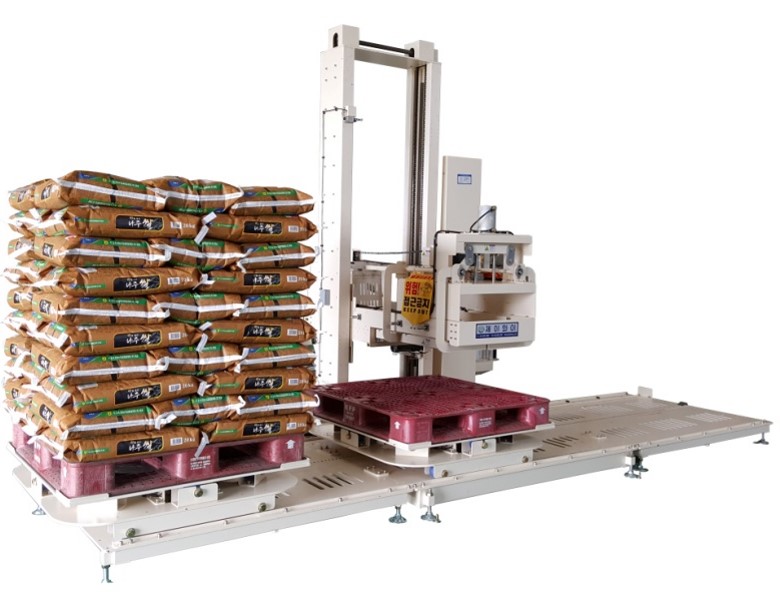

JYLD (Double Type)

Power Supply
AC380V
Operating Temp.
-10°C ~ 50°C
Relative Humidity
90%
(Non-condensing conditions)
Air Consumption
Below 3 HP
Power Consumption
Below 2.5 kW
Detection Device
Emergency switch & indicator display
Control Panel
TFT‑LCD screen,
Auto setting for 10kg / 20kg / 40kg
Processing Capacity
500 ~ 600ea/hr
Dimensions
5,500 × 3,200 × 2,900 mm

Notes

  • Additional charges may apply depending on the installation location (e.g., C/V extension, etc.).
  • Compatible with 10–40kg Kraft Paper, PP, and PE bags.
  • Additional fees apply when using 40kg bags or pallet wrapping.
  • Supports box packaging from 5–20kg.
  • Optional wrapping unit available at extra cost.

STRONG POINTS

  • A cost-effective model with guaranteed product quality and operational reliability.
  • 360-degree turntable rotation enhances safety and ease of use.
  • Foot sensor control enables flexible speed adjustment and easy relocation of the lightweight unit.

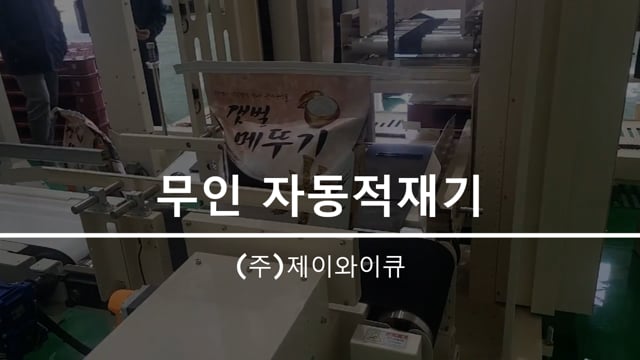

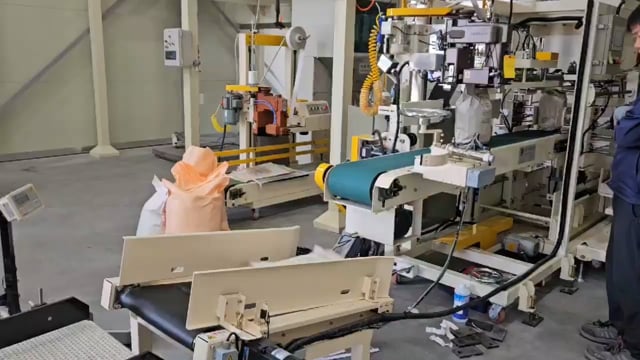

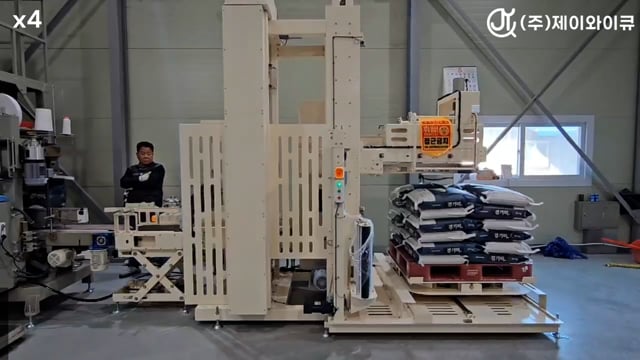

COMMISSIONING

※Click the video to see detailed operation instructions.

Play video
Play video
